• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• OnStar with 4G LTE provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds (Visit www.onstar.com for vehicle availability, details and system limitations. Services and connectivity may vary by model and conditions. 4G LTE service available in select markets. 4G LTE performance based on industry averages and vehicle systems design. Some services require data plan.)
• Remote Keyless Entry
• Seat trim, Cloth
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seats, front 40/20/40 split-bench, 3-passenger. Available in cloth or leather. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar, lockable storage compartment in seat cushion, and storage pockets. (Leather with (KA1) heat is an available extra charge option with (H1Y) Jet Black leather appointed interior trim and requires (PCM) LT Convenience Package. Upgradeable to (A95) front bucket cloth seats.)
• Single-slot CD/MP3 player
• SiriusXM Satellite Radio (subscription required)
• Steering column, manual Tilt-Wheel
• Steering wheel audio controls
• Steering wheel, leather-wrapped with audio and cruise controls
• Visors, driver and front passenger illuminated vanity mirrors
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar Equipped (subscription required)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

• AIR CONDITIONING DUAL-ZONE AUTOMATIC CLIMATE CONTROL
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• JET BLACK CLOTH SEAT TRIM
• 2015 INTERIM PROCESSING CODE
• LAMPS SMOKED AMBER ROOF MARKER
• LPO FRONT AND REAR MOLDED SPLASH GUARDS BLACK
• WHEEL 18" X 8" (45.7 CM X 20.3 CM) FULL-SIZE STEEL SPARE
• DEFOGGER REAR-WINDOW ELECTRIC
• LED LIGHTING CARGO BOX WITH SWITCH ON CENTER SWITCH BANK
• HILL DESCENT CONTROL
• REAR VISION CAMERA with dynamic guide lines
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• SNOW PLOW PREP PACKAGE includes power feed for backup and roof emergency light (KW5) 220- amp alternator with gas or diesel engine forward lamp wiring harness (TRW) provision for cab roof mounted lamp/beacon (NZZ) underbody shields and Heavy-Duty front-springs.
• REAR AXLE 4.10 RATIO
• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• TUNGSTEN METALLIC
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER. Available in cloth or leather. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar lockable storage compartment in seat cushion and storage pockets. (STD)
• PAINT SOLID
• SEAT ADJUSTER DRIVER 10-WAY POWER
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps (Includes (JL1) trailer brake controller.
• WHEELS 18" (45.7 CM) CHROMED ALUMINUM includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel.
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• REMOTE VEHICLE STARTER SYSTEM Includes (UTJ) Theft-deterrent system.)
• GVWR 9500 LBS. (4309 KG)
• THEFT-DETERRENT SYSTEM UNAUTHORIZED ENTRY
• FOG LAMPS FRONT HALOGEN
• Z71 PACKAGE OFF-ROAD includes twin tube Rancho brand shocks (JHD) Hill Descent Control (NZZ) underbody shields. Also includes brushed metal Z71 door sill plate unique Z71 gauge cluster unique finish interior trim plates unique lower bumper appearance unique grille design with Z71 badge and Z71 pickup box decals Includes (T3U) fog lamps.
• CHEVROLET MYLINK AUDIO SYSTEM 8" DIAGONAL COLOR TOUCH WITH AM/FM/SIRIUSXM USB PORTS auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio voice-activated technology for radio and phone
• LT CONVENIENCE PACKAGE includes (AG1) driver 10-way power seat adjuster when ordered with (AZ3) bench seats only (BTV) Remote vehicle starter system (UVC) Rear Vision Camera (C49) rear-window defogger (N37) manual tilt and telescoping steering column (KI4) 110-volt power outlet and (T3U) fog lamps (Includes (CJ2) dual-zone automatic climate control (IO5) Chevrolet MyLink 8" Diagonal Color Touch audio system.
• STEERING COLUMN MANUAL TILT-WHEEL AND TELESCOPING
• ALTERNATOR 220 AMPS
• POWER OUTLET 110-VOLT AC
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Telematics
• WiFi Hotspot
• Requires Subscription
• Bluetooth® Connection
• Split Bench Seat
• Driver Adjustable Lumbar
• Cloth Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Floor Mats
• Power Windows
• Power Door Locks
• Cruise Control
• Keyless Entry
• Power Door Locks
• A/C
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Telematics
• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.10
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 61.0
• Tailgate Width (in): 62.2
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 41.26
• Front Bumper to Back of Cab (in): 150.10
• Ground Clearance, Front (in): 9.65
• Ground Clearance, Rear (in): 9.65
• Height, Overall (in): 78.23
• Length, Overall w/o rear bumper (in): 239.50
• Wheelbase (in): 153.70
• Width, Max w/o mirrors (in): 80.51
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 42.80
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.50
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Crew Cab Pickup

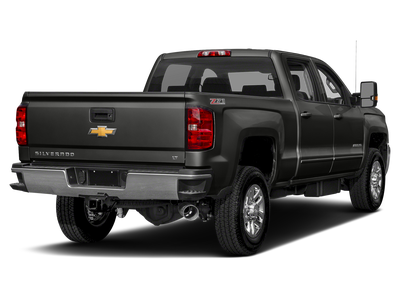

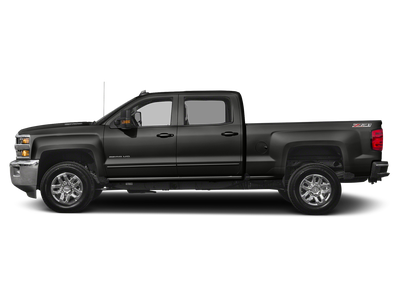

• Vehicle Name: Chevrolet Silverado 2500HD Built After Aug 14
• Suspension
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Order Code: QGM
• Front Tire Size: LT265/70R18E
• Rear Tire Order Code: QGM
• Rear Tire Size: LT265/70R18E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Maximum Trailering Capacity (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Weight Information
• Curb Weight - Front (lbs): 3788
• Curb Weight - Rear (lbs): 2736
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6200
• Gross Combined Wt Rating (lbs): 20500
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 18 X 8.0
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 7.5
